A customer in Mississauga asked if I could help with an unusual problem outside several residential units.
The exterior wall vents were mounted close to grade in a narrow space between the buildings. During the winter, drifting and accumulating snow could reach the vents and interfere with their ability to move air freely.
The customer did not need a solid box placed over them. That would only replace one problem with another. The vents needed protection from direct snow accumulation while remaining open enough to maintain airflow.
I agreed to look at the condition and build a practical solution: a series of custom snow guards for the exterior wall vents.
★★★★★
70 Google Reviews.
Earned One Job at a Time.
Real projects. Real homes. Real customers.
Wood Job Finish Carpentry is trusted by homeowners, contractors, designers, and realtors who care about clean work, careful details, direct communication and finish carpentry that is handled with personal responsibility.
Planning a Metal Roof for the Vent Guard
Each enclosure needed a roof that would help direct snow and water away from the protected vent.

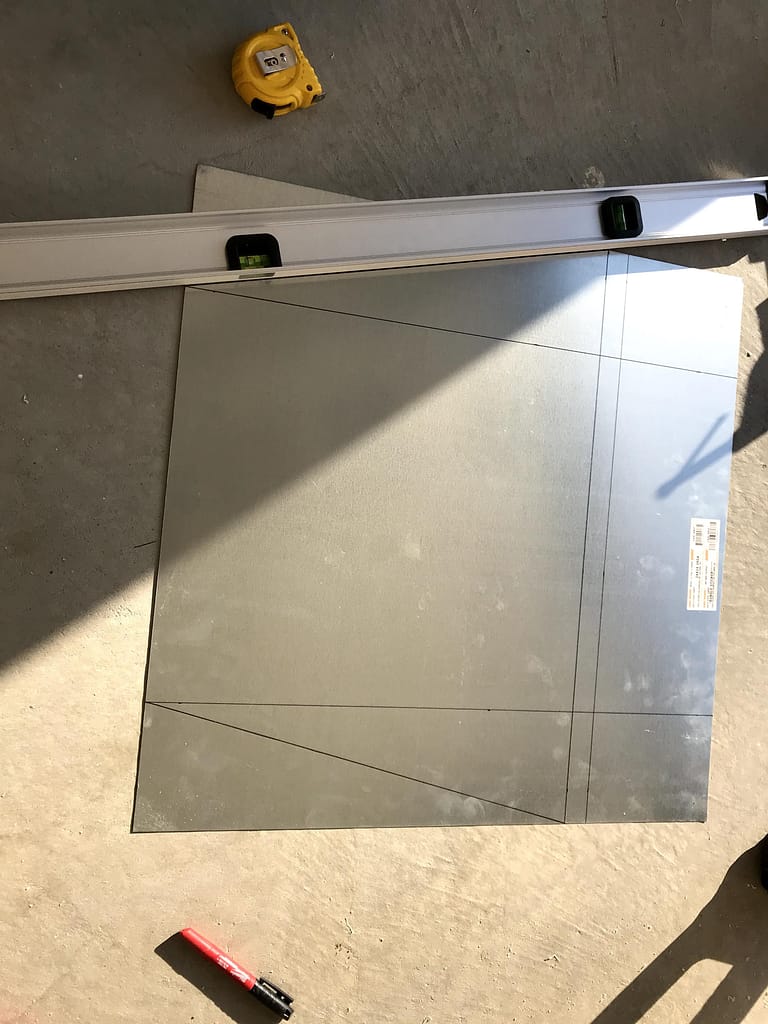

I started with a flat sheet of metal, measured the required dimensions and marked the bend lines directly on the sheet. The layout included the main sloped surface, the side returns and the wall flange needed to secure the finished roof.
After cutting and bending the metal, I formed it into a small sloped weather cap. The roof was then spray-painted white to match the louvered enclosure below and give the completed guard a more unified appearance.
This was not an off-the-shelf vent cover. The proportions had to work with the existing vent location, the exterior wall and the limited space surrounding each unit.

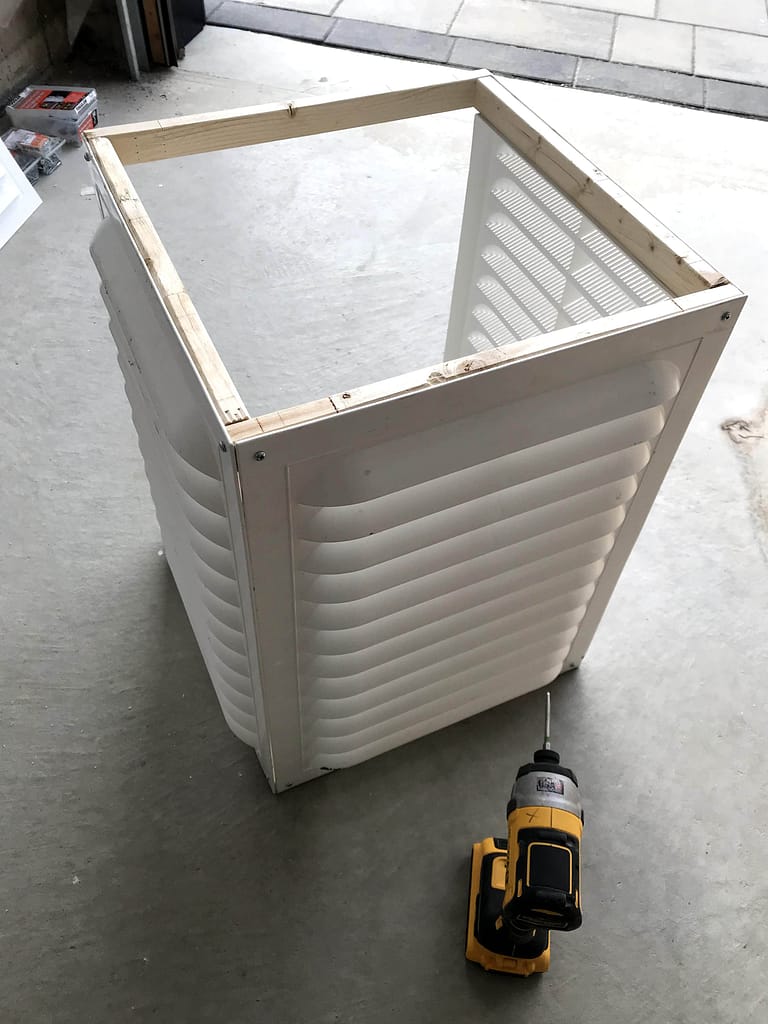

Building a Guard That Could Still Breathe
The enclosure could not be built with solid sides.
An exterior wall vent needs an open path for air movement. Completely enclosing it could restrict the intake or exhaust and prevent the mechanical system from operating as intended.
For that reason, I built the guard using louvered exterior panels supported by a fitted wood frame. The angled openings in the panels created a physical barrier around the vent while still leaving substantial open area for air to pass through.
The frame held the panels square, established the size of the enclosure and provided solid attachment points for the custom metal roof.
The result was closer to a ventilated protective enclosure than a conventional cover. It surrounded the vulnerable area without placing a sealed box over the wall termination.
Fitting the Snow Guard Around the Existing Wall Vent

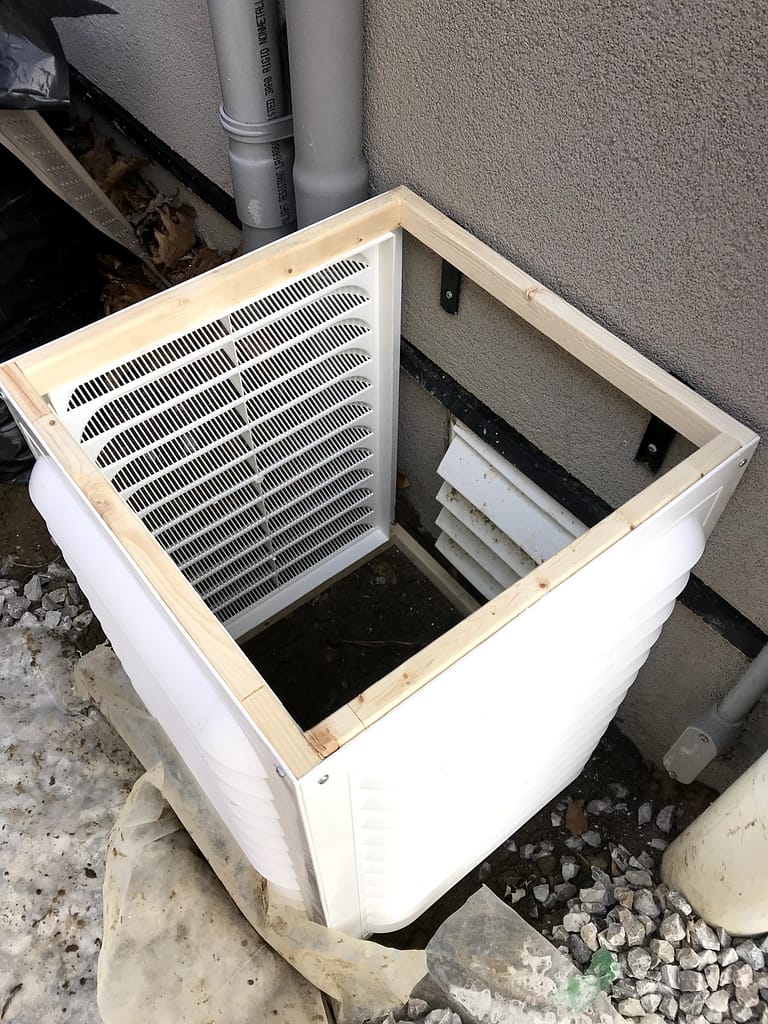

The third photo shows why the enclosure was needed and how it worked.
The original louvered wall cap was positioned low on the exterior wall, close to the gravel and the area where snow could collect. The custom enclosure extended outward around it, creating a protective buffer without attaching directly to or blocking the vent itself.
The louvered sides allowed air to continue moving through the enclosure. Once the metal roof was added, it also helped shield the opening from snow falling or settling directly above it.
The guard therefore had to perform two jobs at the same time:
- Reduce direct snow accumulation around the exterior wall vent
- Preserve sufficient open space for ventilation
That balance was the main design consideration throughout the project.

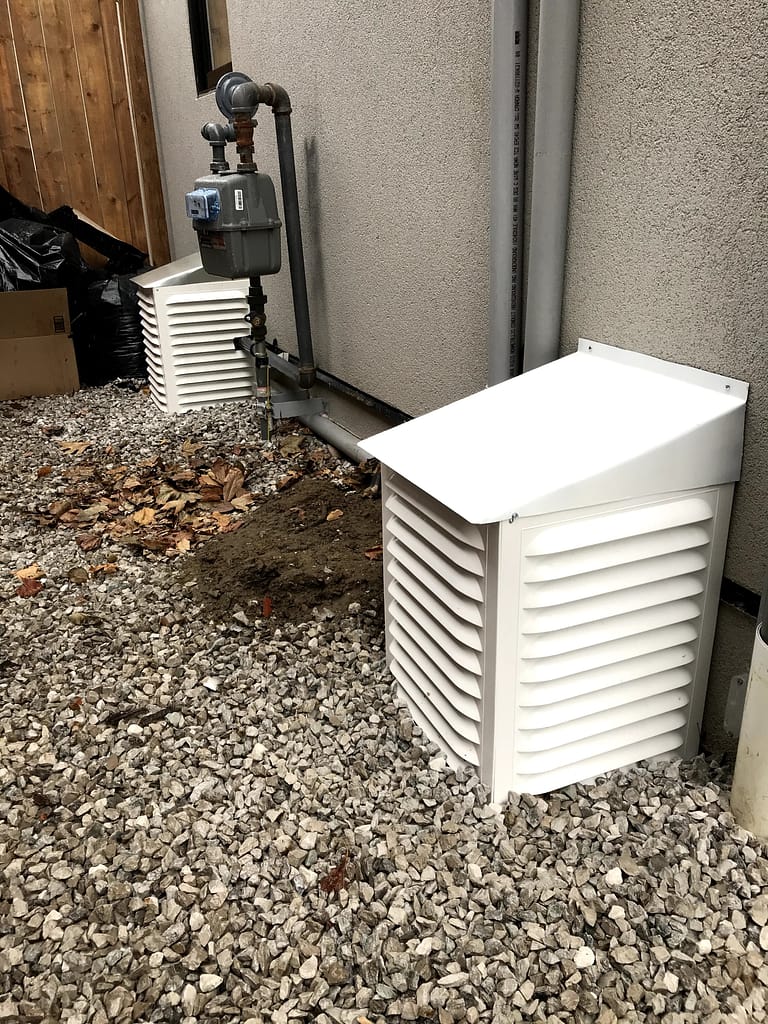

Completing the Exterior Vent Snow Guards
Once the enclosures were assembled and fitted, I installed the formed metal roofs and spray-painted the visible components white.
The sloped roof gave snow and water somewhere to go instead of allowing it to collect directly above the vent. Its wall flange provided a clean attachment point, while the projecting front edge carried moisture away from the louvered panels below.

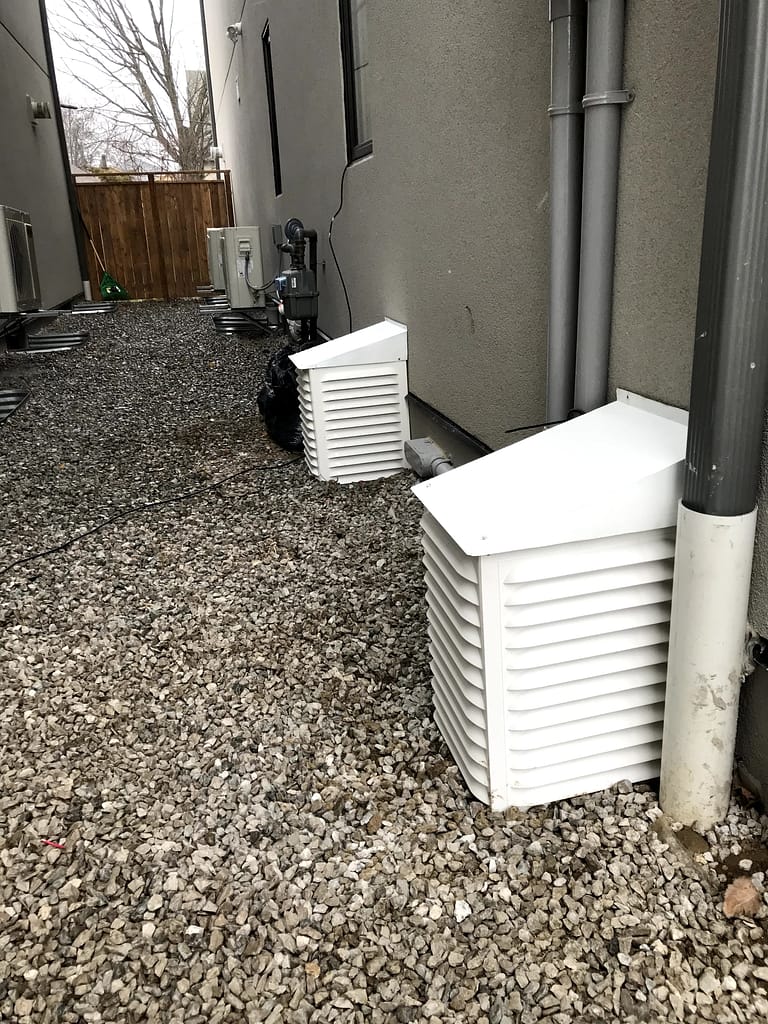

The finished guards were installed at the affected units along the side of the Mississauga development. From farther away, they read as consistent exterior components rather than improvised boxes placed around the vents.
Each guard followed the same basic design, but the surrounding pipes, utility equipment, wall conditions and available working space still had to be considered during installation.
A Practical Solution Outside the Usual Service List
This was not a standard interior door, casing or baseboard project.
The customer had a specific problem and asked whether I could find a practical way to solve it. The work required measuring, layout, framing, metal cutting and bending, assembly, painting and installation—but more importantly, it required understanding what the finished guard needed to accomplish.
It had to protect the vent without preventing it from doing its job.
That kind of problem-solving is part of being a working carpenter. Not every useful project fits neatly beneath the name of a standard service. Sometimes a customer simply needs someone who can look at the condition, think through the limitations and build a sensible solution.
This is also why Wood Job considers selected focused projects. As explained in Small Carpentry Jobs Still Deserve a Trusted Finish Carpenter, the physical size of a job does not determine whether the detail matters to the customer.
Important Considerations Around Exterior Vents
A protective enclosure should not be placed around an exterior vent without first identifying what the vent serves.
Fresh-air intakes, dryer exhausts, bathroom exhausts and combustion-related terminations can have different requirements. Clearances, airflow, manufacturer instructions and access for future maintenance all matter.
The solution shown here was designed around the existing wall vents and site conditions at this particular Mississauga project. It should not be treated as a universal enclosure for every type of mechanical termination.
The purpose was not to seal or relocate the vents. It was to create an open, louvered snow barrier around them.
Need a Custom Carpentry Solution in Mississauga?
Wood Job Finish Carpentry primarily works on interior doors, trim, casing, baseboards, wall details and other residential finish carpentry. I also consider selected custom projects when the work suits my tools, experience and schedule.
If you have an unusual carpentry detail that does not have an obvious off-the-shelf solution, send:
- Clear photos of the full area
- Close-up photos of the condition
- Approximate dimensions
- The project location
- A short explanation of what needs to be protected or completed
- Any available product or mechanical-system information
- Your preferred timeline
Photos usually make it possible to determine whether the project is suitable for Wood Job or whether another specialized trade should handle it.
See other work available from a finish carpenter in Mississauga, or send your photos and project details for a rough estimate.
Frequently Asked Questions
What is an exterior wall vent snow guard?
An exterior wall vent snow guard is a protective structure designed to reduce direct snow accumulation around a low-mounted exterior vent. It must provide protection without unnecessarily restricting the vent’s required airflow.
Why were louvered panels used for these vent guards?
The angled louvered panels created a physical barrier while leaving open space for air movement. Solid walls would have formed a more restrictive enclosure around the existing vent.
What does the metal roof do?
The sloped metal roof helps prevent snow and water from settling directly above the vent enclosure. It directs moisture outward and provides additional overhead protection.
Can a snow guard be installed around any exterior vent?
No. The purpose of the vent must be identified first. Fresh-air intakes, appliance exhausts, dryer vents and combustion-related terminations may have different clearance and airflow requirements. Manufacturer instructions and applicable mechanical requirements must be respected.
Does Wood Job take unusual small carpentry projects in Mississauga?
Wood Job considers focused custom projects based on the requested work, location, materials, safety requirements and schedule. Clear photos and approximate measurements are the best starting point.
